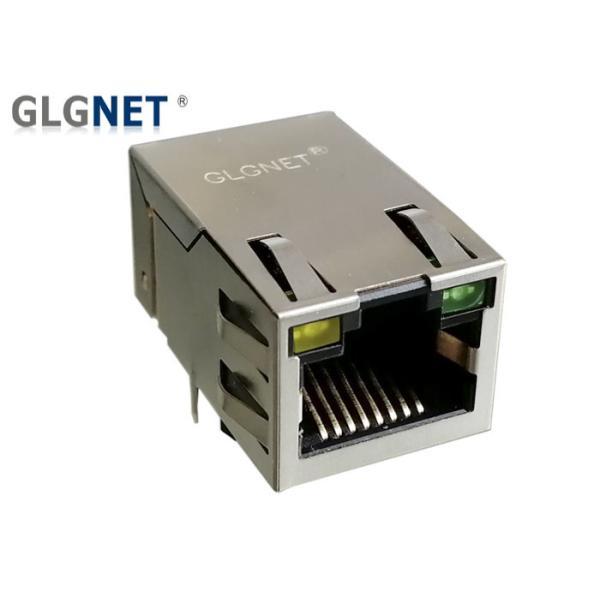

LAN RJ45 Connector Single Port RJ45 Connector with 1000 Base -T Magnetic

1. LAN RJ45 Connector Features

• With or without POE Function
• 90 ° or 180° Orentation
• Complies with requirements of IEEE 802.3u standards
• RJ45 connector is with 1000 Base - T magnetic
• Broad set of configurations
• -40°C to +85°C or 0°C to +70°C operating temperature range
• Combinations of green, yellow, orange, and red LEDs
• Comply with RoHS, REACH, UL requirements
• Design for 1000 Base - T transmission over UTP-CAT5 cable

2. LAN RJ45 Connector Materials

1. Housing: Class Filled PA46 UL94V-0 (ROHS)
2. Insert: Class Filled PA46 UL94V-0 (ROHS)
3. Sheliding: 0.2mm thickness copper alloy with Nickel Plated (RoHS)
4. Contact: 0.35mm Phosphor Bronze plating over Nickel (RoHS)
5. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
6. All the Raw materials meet RoHS
7. Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

3. GLGNET Advantages:

• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• 20 years experiences in Magnetic RJ45 Connectors

4. LAN RJ45 Connector Applications:

• LED TV
• SMart TV
• STB
• PCs
• Router,
• Splitter
• Switcher
• Industrial process control
• Networking and communications
• Broadcast video
• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Set-top boxes and video

5. GLGNET Customization Services

• With or without POE function;
• 90 ° or 180 ° Orientation
• Supports to custom different structure, Tab - up or Tab - Down;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

6. LAN RJ45 Connector Electrical Specification:

7. LAN RJ45 Connector ( JGA1T805-YGP) Attributes:

8. LAN RJ45 Connector Mechnical Drawing
