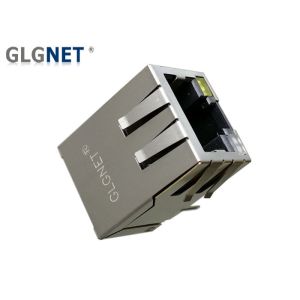

Green Yellow Orange Single Port Rj45 Connector With Magnetics 1000 Base - T

1. GLGNET Supports to Custom Different Magnetic RJ45 Connector According to Customer's Requirements;

• Supports to custom different Dimensions, Port, Rows, Latchs, Materials and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Supports to custom different Pin Length;
• Support to be with or without LED diode,
• Supports to be with or without EMT TAB ( EMI Spring , EMI Finger );
• LED color can be green, yellow, orange, red and so on;
• Supports to be with or without lightpipes;
• Latch Up Or Down

2. Features

• Broad set of configurations
• Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, or 5GBase-T
• Supports PoE and PoE+ (10/100Base-T)
• Compatible with surface-mount with paste-in-hole (PIH) technology
• -40°C to +85°C or 0°C to +70°C operating temperature range
• Combinations of green, yellow, orange, and red LEDs
• Complies with requirements of IEEE 802.3u standards
• RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic
• Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
• Comply with RoHS requirements

3. Product Parameters

4. Electrical Specification

6. Applications

Equipment utilizing a network port

• NICs
• Servers
• PCs
• Consumer Devices

Networking equipment

• Hubs
• Switches
• Routers
• PCs
• Servers
• Workstations
• Motherboards

7. GLGNET Advantage

• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

8. Mechnical Drawing
